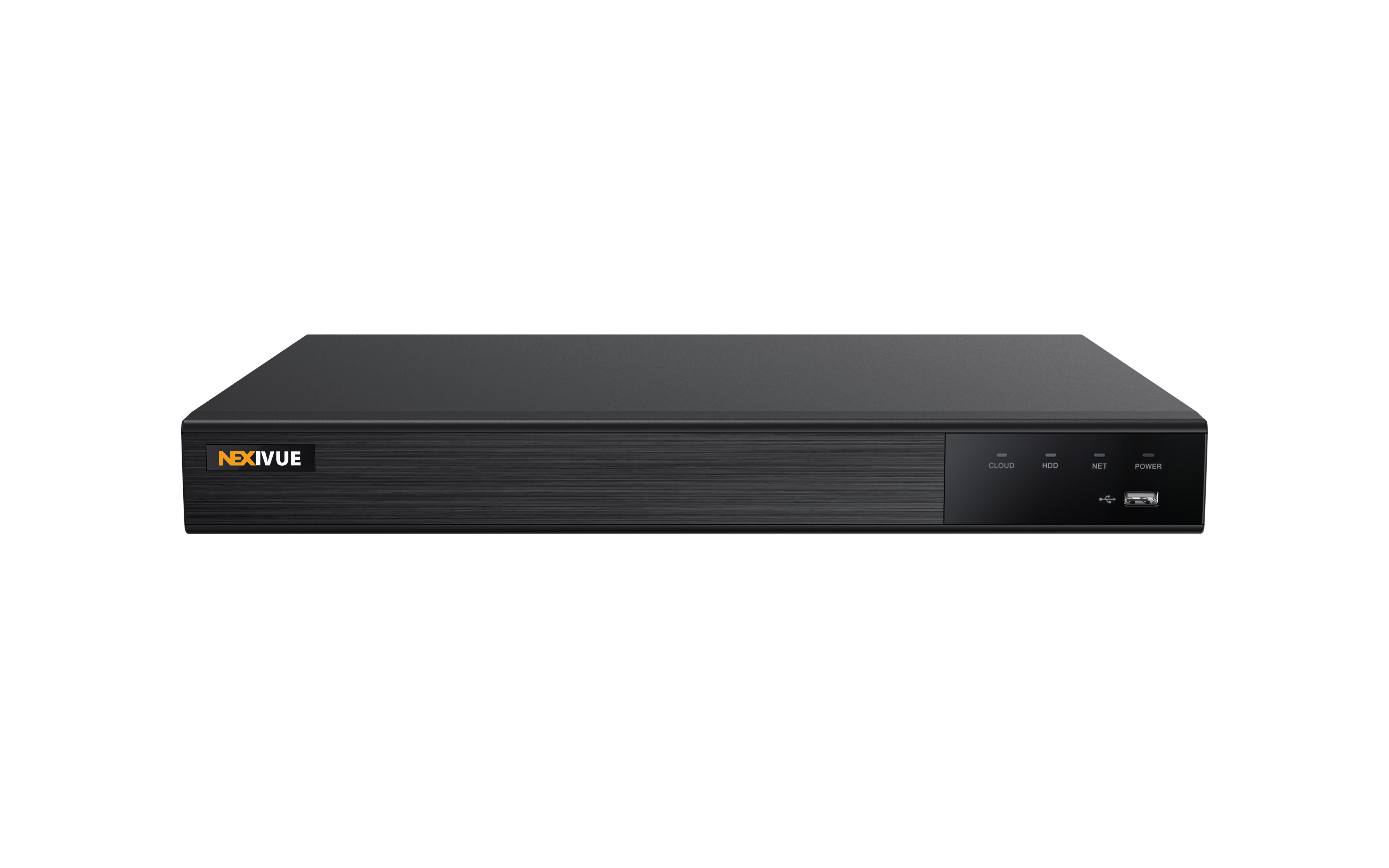

7A32C-H2
32Ch. 4K Network Video Recorder
- Up to 32 Channel IP camera input
- Support Up to 16MP Resolution
- NEXICODE, H.265, H.264 Video Compression
- Max Incoming Bandwidth 320Mbps, Outgoing Bandwidth 160Mbps
- 2 SATA Port, Up to 20TB capacity
| Operating System | Embedded LINUX |
|---|---|
| IP Camera Input | 32 Channels |
| Video Input | 32 Channel (16MP/ 12MP/ 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080p/ 1280x1024/ 960p/ 720p/ D1/ CIF) |
| Resolution | 16MP (7680 × 2160), 12MP (4000 × 3000), 8MP (3840 x 2160), 6MP (3072 × 2048), 5MP (2592 × 1944), 4MP (2688 × 1520/ 2560 × 1440), 3MP (2048 × 1536), 1080P (1920 × 1080), (1280 x 1024), 960P (1280 x 960), 720P (1280 × 720), 960H (960 x 480), D1 (720 × 576/ 720 × 480) |
| Preview capability | 1 CH 16MP@25fps, 2 CH 12MP@25fps, 4 CH 8MP@25fps, 5 CH 6MP@25fps, 6 CH 5MP@25fps, 8 CH 4MP@25fps, 10 CH 3MP@25fps, 16 CH 1080p@25fps, 32 CH 720p/D1@25fps |
| Playback Capability | 1 CH 16MP@25fps, 2 CH 12MP@25fps, 4 CH 8MP@25fps, 5 CH 6MP@25fps, 6 CH 5MP@25fps, 8 CH 4MP@25fps, 10 CH 3MP@25fps, 16 CH 1080p/ 720p/ D1@25fps |
| Bandwidth Rate | 320 Mbps for Input, 320 Mbps for Recording and 160 Mbps for Transmission |
| Video Output | 1 HDMI: 4K (3840 x 2160), 2K (2560 x 1440), (1920 x 1080), (1280 x 1024), (1280 x 720), (1024 x 768) 1 VGA: 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 |
| Video Display Split | 32 Channel/ 25 Channel/ 17 Channel/ 16 Channel/ 13 Channel/ 10 Channel/ 9 Channel/ 8 Channel/ 6 Channel/ 4 Channel/ 2 Channel/ 1Channel |
| Record Mode | Normal Record/ Motion Detection/ Alarm/ Intelligent |
| OSD | Camera Title, Time, Recording, Motion Detection, Event Alarm |
| Motion Detection | 32 Channel, MD Zones: 396 (22 x 18) |
| Trigger Events | Recording, Email, FTP, Snapshot, Show Message, Pop-up Window, Alarm Output, Buzzer |
| Smart Event | Intrusion Detection, Line Crossing Detection, Region Entrance, Region Exiting, Loitering Detection, Area Gathering Detection |
| Search Mode | ALL, Normal Video, Motion Detection, Alarm, Tag search, Smart Event, Picture, Log |
| Playback function | Play, Pause, Fast forward, Rewind, Previous frame, Next frame, Digital Zoom, Clip, Audio |
| Digital Zoom | Support |
| Video Compression | NEXICODE, H.265, H.264 |
| Audio Compression | G711U, G711A, AAC |
| Audio Input | 1 Port RCA |
| Audio Output | 1 Port RCA |
| Alarm Input | 4 Channels |
| Alarm Output | 1 Channel |
| Protocols | IPv4/ IPv6/ TCP/ IP, HTTP, HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, NexiQloud, PPPOE, SNMP, Onvif (Profile S, T, G) |
| Remote Operations | Support |
| OTA Upgrade | Support |
| Backup Mode | USB Device/ Network |
| Browser | Edge, Google Chrome, Firefox, Safari |
| USB Interface | Front panel: 1 x USB 2.0, Rear panel: 1 x USB 3.0 |
| Ethernet | 1 x RJ45 (10M/100M/1000M self-adaptive Ethernet Interface) |
| Storage Capacity | 2 SATA Hard Disk Interface (3.5" SATA), Up to 20TB capacity |
| Power Consumption | DC12V/4A ≤15 W (Without Hard Disk) |
| Operating Temperature | -10°C ～50 °C |
| Operating Humidity | 10% ～90%( Humidity) |
| Dimensions | 380mm x 316mm x 51mm |
| Weight | 1710g (Without HDD) |
NEXICODE is Nexivue’s optimized implementation of H.265. It inte grates intelligent encoding algorithms that adapt to various moni toring scenarios, significantly reducing bit rate and storage require ments without compromising video quality. NEXICODE enhances overall system efficiency and is more cost-effective.
